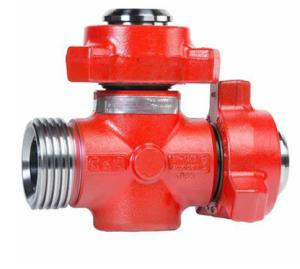

Drill Rig Parts Oilfield Wellhead Fig 3" 1502 Plug Valve
Product Descrption
Plug valve is especially suitable to separate,connect and shunt the medium .Because of the wiping function between Plug valve sealing faces, it can avoid contacts with flowing medium when it is totally opened ,thus it can be also used for medium with suspended particle, We hace 1'' ,2'' and 3'' Plug valve,which was adopted unions to connect and it can be connected to products of the similar category arbitrarily.Its maintenance package can interchange with the similar category products of American FMC and SPM.
Main Characterstics of TR Wellhead Plug Valve
- Excellent abrasion and corrosion resistance: Plugs are made from premium alloy steel, with special coating and heat treating process which greatly improves sealing capacities, abrasion and corrosion resistance
- Interchangeable design: replacing plate and plug cap with handwheel operator can meet different service applications.
- Fast assembly, high strength: integral plugs are designed a more compact valve and ensier maintenance.
- Improved seals: Special design of seal segments with standard O-ring improves sealing capacities and extends service life
- Special side segment design: Metal side segments will improve pressure containning capacity in limited space.
- Highly corrosive resistance: Seal rings are made from sepcial materials with impoved corrision resistance.
- Pressure containing parts:valve bodies are forged to meet NACE MRO0175 requirements for sour service.
- 14.Dual seals: in the inner and outer grooves are made from HNBR which is soue gas resistant and low temperature resistant material. The anti-extrusion metal ring added to the inner ting extends service life.
Key Specification of TR Wellhead Plug Valve
Nom.
Size | End
Connection | CWP
psi(bar) | P/N | Weight
lb (kg) | Operator
/Actuator | Dimension(in.) | Service |
| A | B | C | D |
| 1" x 1" | FIG 1502 (FxM) | 15,000
(l,034) | 3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000
(1,034) | 3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000
(l,034) | 3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000
(1,034) | 3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000
(1,034) | 3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual |
| 1"x 2" | FIG 1502 (FxM) | 10,000
(690) | 3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000
(1,379) | 3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
1(1/2" x
1(1/2" | FIG 1502 (FxM) | 15,000
(1,034) | 3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000
(1,034) | 3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000
(1,034) | 3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000
(1,034) | 3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual |
| 2"x 2" | FIG 1502 (FxM) | 10,000
(690) | 3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000
(1,379) | 3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000
(1,034) | 3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000
(1,034) | 3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000
(1,034) | 3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000
(690) | 3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000
(1,379) | 3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000
(1,379) | 3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000
(1,379) | 3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000
(1,034) | 3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000
(1,034) | 3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000
(1,034) | 3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
RFQ
1.How long is your delivery time?
It is according to the model and quality. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
