Oil Drill Spare Parts Fluid Handling High Pressure Long Radius Pipe Swivel Joint
Main Introduction
Swivel joint uses high-strength alloy steel,manufactured by special heat treatment technology.It uses a unique ballitic and steel ball structure to ensure that the joint has good mobility and impact resistance.Acme threaded connection makes it with advantages of easy and fast disassembly,firm connection,multiple seal design and high machining accuracy,to ensure the joint sealing properties.
High pressure swivel joint is made of high-strength alloy steel and through heat treatment, so that the rated working pressure intensity is ensured and the service life is prolonged. Our swivel joint is equipped with a steel ball in hardened orbit, so it can rotate flexibly. Both ends can be connected with LP internal threads or unions, applicable to various ways of pipe installation. In this case, the rated working pressure intensity is ensured and the service life is prolonged. Our swivel joint falls into two types: Long radius and short radius.

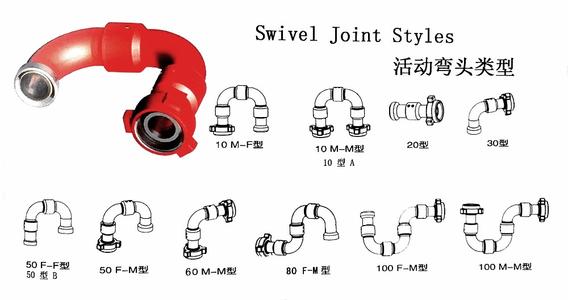

Various models of swivel joints and their repair kits are available, suitable for normal or low temperature, or H2S environments, with sizes ranging from 1" to 4" and rated WP ranging from 2000psi-20000psi (14MPa-140MPa). Our products are available in the models of style 20, style 30, style 40, style 50, style 60, style 70, style 80, style 10, and style 100.
Why Choose TR Swivel Joint?
- Various end connections including integral union or Line Pipe Thread.
- Smooth rotation and movement without sacrificing strength and integrity of the steel.
- Streamlined bore minimizes flow restrictions, turbulence and pressure drop.
- Long-sweep Swivel Joints have extra-long radius elbows for better flow characteristics.
- Specifically for high pressure applications.
Technical Specifications of Our Swivel Joint
| Product Name | Thread Type | End Connection | Thread | Working Pressure | Model |
| Long radius swivel joint | 1" 2" 3" 4" | Tr100X12 Tr110X8 Flg602 Flg1002 Flg1502 | MXM MXF FXF | 5000psi 6000psi 10000psi 15000psi | 10# 20# 30# 50# 60# 80# 100# |
| Swivel joint connection can be designed according to user needs. |
| "F"--Screwed joint,"M"--Ball joint. |
| For example;3"X15000psi-flg1502(FXM)-10# |
Main Specs:
1. Temperature: normal or low temperature
2. Size:1"-4"
3. WP: 2000-20000psi
4. long and short radius swivel joints
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
